Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Datos del producto:
| Lugar de origen: | China. |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | Los datos de las pruebas de seguridad deberán estar disponibles en el sitio web de la empresa. |
| Documento: | 5 Meters IR Drying Machine.pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 SET |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Paquete de madera |
| Tiempo de entrega: | 10 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Características de seguridad: | Protección contra el sobrecalentamiento | El tipo: | Secadora |
|---|---|---|---|
| banda transportadora: | Cinturón de malla de teflón | Válvula de tensión: | Las demás: |
| El poder: | 2000 W | Función: | Secador rápido de vaso de plástico |
| Ajuste del contador de tiempo: | 1 a 60 minutos | garantía: | 1 Año |
| Método de calentamiento: | En el infrarrojo | El color: | Computación Blanco |
| Ancho efectivo en seco: | 200 mm | La luz: | Tubo infrarrojo |
| Condición: | Nuevo | ||
Descripción de producto

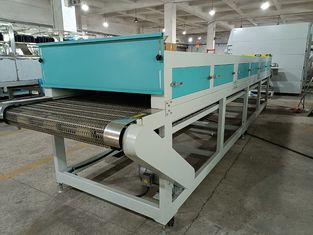

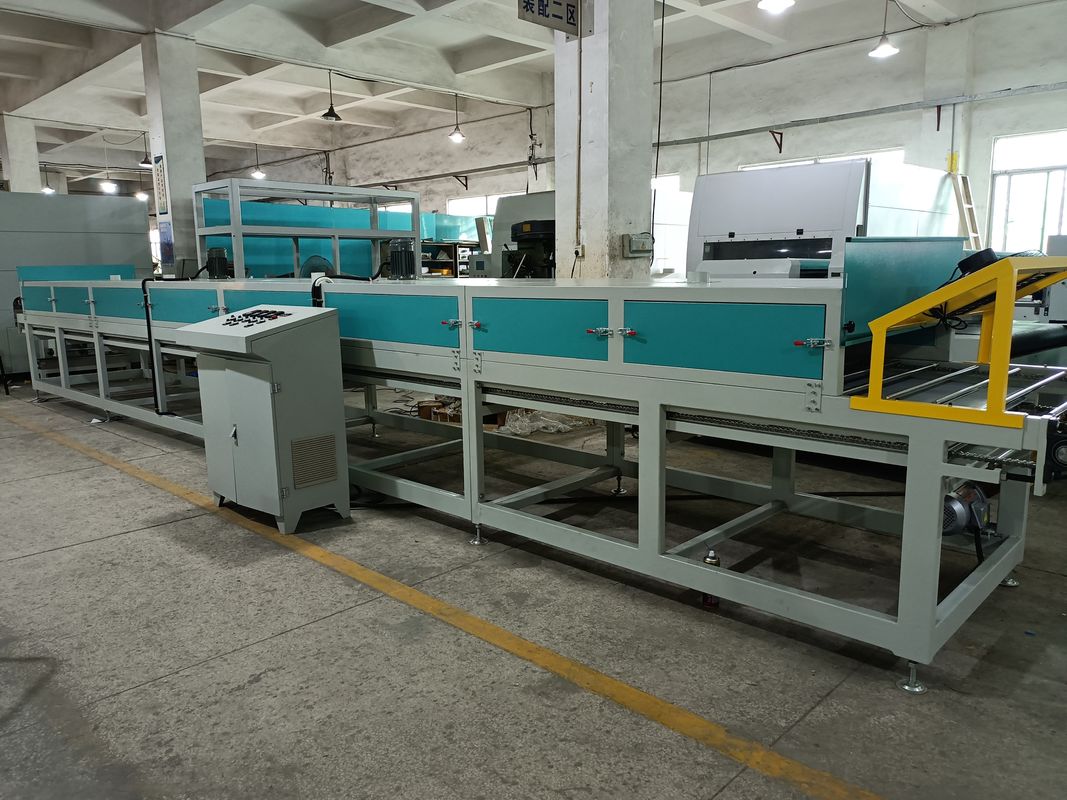

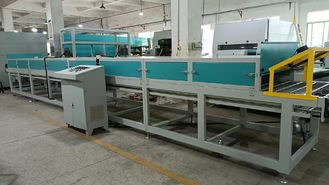

Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Product Description
The 5 Meters IR Drying Machine (Model: OSM-IR-200) is a high-efficiency infrared drying solution designed for continuous industrial production. With a 5-meter drying tunnel and 750W extended shaft motor, it ensures uniform temperature distribution and fast curing for coatings, inks, or adhesives. The Kevlar conveyor belt (imported from the USA) and Taiwan Delta frequency converter enable smooth speed adjustment (1-5 m/min), ideal for high-throughput factories.
Technical Parameters
| Parameter | Details |
|---|---|
| Dimensions | 5000mm (L) × 1000mm (W) × 1280mm (H) |
| Heating Source | US-made infrared quartz lamps, SUS 304 stainless steel inner wall |
| Temperature | Room temperature to 100°C (adjustable via BKC controller) |
| Belt Speed | 1-5 m/min (Delta frequency converter) |
| Power | 750W motor + Taiwan TWT gear reducer |
| Safety | Overload protection, emergency stop, CE-compliant electrical components |
Application
✔ Printing Industry: Drying UV inks on packaging materials.
✔ Electronics: Curing adhesives on PCB boards.
✔ Textiles: Heat-setting for synthetic fabrics.
Customization
-
Adjustable belt width (standard: 200mm).
-
Optional additional heating zones for higher temperatures.
Key Features
✅ Energy-saving: Infrared heating reduces power consumption by 30% vs. traditional ovens.
✅ Precision Control: Delta inverter ensures stable speed and temperature.
Support and Services
-
24/7 technical support via 400-666-2388.
-
On-site installation available in China.
Packing and Shipping
-
Wooden crate packaging (IP65 standard).
-
FOB Dongguan, lead time: 15 days.
FAQ
Q: Can it handle flammable materials?
A: Yes, with optional nitrogen atmosphere customization.
