High-Speed Wood Panel Flow Coating Machine for Factory Flooring: Durable Finish & Mass Production Coating Line
Datos del producto:
| Lugar de origen: | China. |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | OSM-LT-1320 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Envasado de madera |
| Tiempo de entrega: | 40 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Fuente de alimentación: | 380V/50Hz, sistema de cinco hilos trifásicos | Transportación de la dirección: | De izquierda a derecha |
|---|---|---|---|
| Condición: | Nuevo | Garantía: | 1 año |
| Nombre del producto: | línea de productos de recubrimiento de cortina | Velocidad de la línea de producción: | 0 a 10 m/min |
| La transmisión es limitada de ancho: | 1320m m | ||
| Resaltar: | wood panel flow coating machine,high-speed curtain coating machine,factory flooring coating line |
||
Descripción de producto
High-Speed Wood Panel Flow Coating Machine for Factory Flooring: Durable Finish & Mass Production Coating Line
Product Description:
Our high-speed automated flow coating line is engineered for furniture panel, door skin, and laminate flooring manufacturers seeking unparalleled throughput. This system delivers a consistent, high-gloss, or satin finish with exceptional durability, ideal for high-volume production environments. The entire process, from feeding to curing, is seamlessly integrated for maximum efficiency and minimal downtime.
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Dimensions | 6000mm L × 2200mm W × 1400mm H |
| Belt Height from Ground | 850-900mm adjustable |
| Total Weight | 2000 kg |
| Coating Width | 1320 mm |
| Processing Thickness | 3-80 mm |
| Minimum Processing Length | 300 mm |
| Conveyor Power | 2.2 kW |
| Oil Pump Power | 2.2 kW |
| Paint Consumption | 60-200 g/m² |

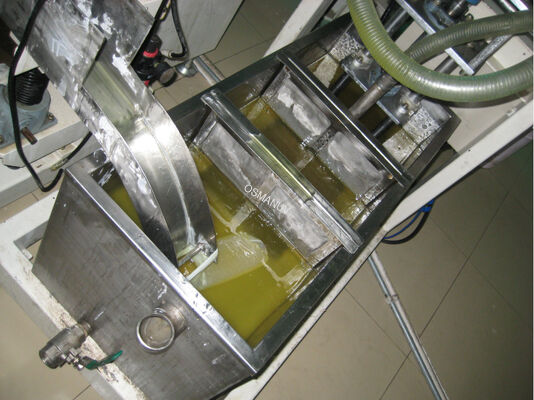

| Paint Tank Capacity | 250 kg |
Application:
Mass production of furniture panels, kitchen cabinets, laminate flooring, door skins, and wall panels.
Feature:
- Ultra-High Speed Coating for maximum output.

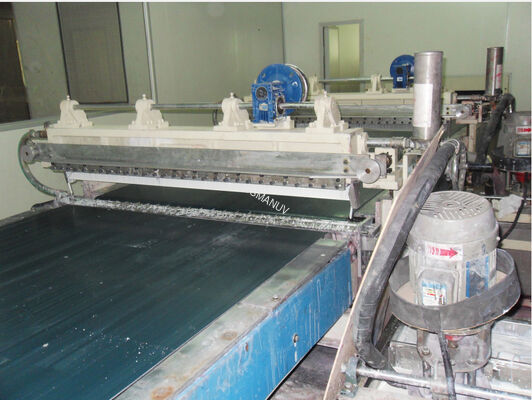

- Precision Coating Head for uniform film thickness.

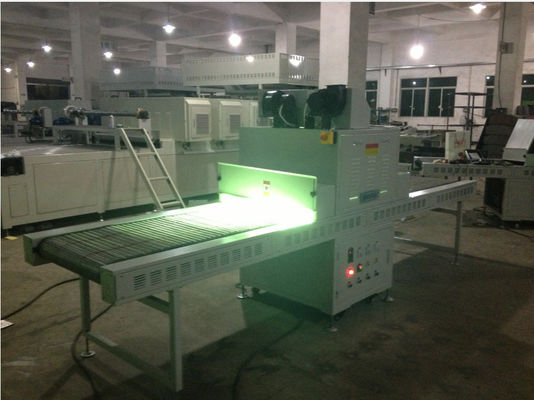

- Energy-Efficient UV Curing System.
- Fully Automated Conveyor System with automated feeding and stacking.
Customization:
We offer extensive customization options including line length, conveyor width, coating tank capacity, and specific curing solutions to match your factory layout and product requirements perfectly.
Support and Services:
Comprehensive package including installation supervision, operator training, remote troubleshooting, and an extensive inventory of spare parts for prompt delivery.
Packing and Shipping:
All modules are crated in heavy-duty wooden frames with waterproof wrapping for sea freight. Professional export packing ensures safe arrival.
FAQ:
- Q: Can this line handle different panel sizes without lengthy changeovers?
A: Yes, the conveyor and coating system are designed for quick width adjustments to accommodate various panel sizes, minimizing downtime.
