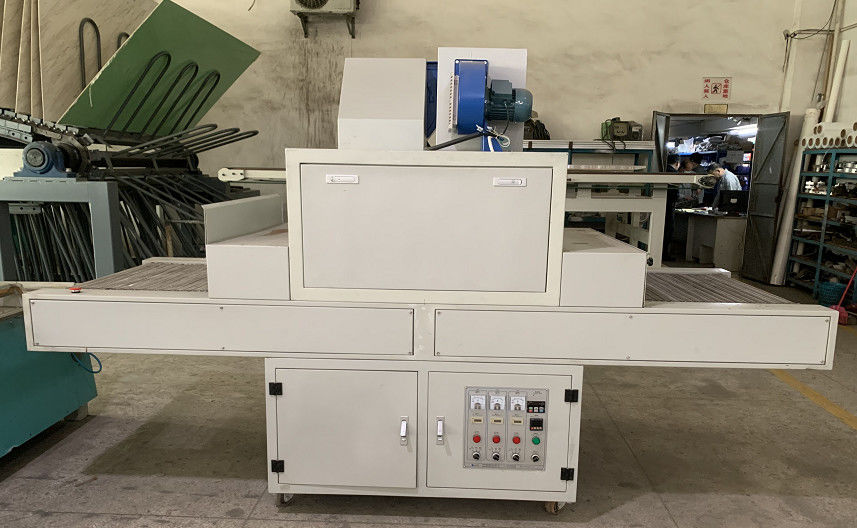

High-Speed UV Curing Line for Acrylic and PVC Sheet Coating - Instant Drying Solution
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | Osmanuv |
| Certificación: | ISO9001 |
| Número de modelo: | OSM-UV-920V |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Negociación |
| Tiempo de entrega: | 30-45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| El secado: | Curado UV o IR | Material de recubrimiento: | Barniz ULTRAVIOLETA |
|---|---|---|---|
| Velocidad de recubrimiento: | 10-30m/min | Fuente de luz: | Luz UV |
| Espesor de trabajo: | 3-80m m | Caja eléctrica: | caja eléctrica independiente |
| longitud mínima: | 300 mm | ||
| Resaltar: | UV curing machine for acrylic sheets,high-speed PVC sheet coating machine,instant drying UV curing line |
||
Descripción de producto
High-Speed UV Curing Line for Acrylic and PVC Sheet Coating - Instant Drying Solution
Keywords: UV curing line, acrylic sheet coating, PVC surface treatment, instant drying system, customizable coating line
Composition of Production Line:
Automatic feeding system, precision coating station, UV LED curing tunnel, conveyor system, cooling section, unloading station
Product Description:
This high-speed UV curing line provides instant drying for coated acrylic and PVC sheets, ensuring perfect surface finish with minimal energy consumption and maximum production efficiency.
Technical Parameters:
| Parameter | Specification |
|---|---|
| UV Wavelength | 365nm/385nm/395nm (customizable) |
| Conveyor Width | 600-2400mm (customizable) |
| Curing Speed | 5-30 m/min (adjustable) |
| UV Power | 2-20 W/cm² (customizable) |
| Power Supply | 380V/50Hz (configurable) |
Application:
Signage boards, decorative panels, display materials, furniture surfaces
Customization:
Fully customizable UV wavelength, conveyor width, and curing speed
Feature:
-
Instant curing (0.5-3 seconds)
-
70% energy saving vs traditional drying
-
Mercury-free LED UV technology
-
Uniform irradiation system
Support and Services:
Installation guidance, operational training, maintenance support
Packing and Shipping:
Standard export packaging, professional logistics service
FAQ:
Q: Can it handle different sheet thicknesses?
A: Yes, the system is customizable for various thicknesses from 1mm to 50mm.
