Aluminum Panel UV Curing Machine Fast Drying System for Metal Surface Coatings
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | Se aplicarán los siguientes requisitos: |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Envasado de madera |
| Tiempo de entrega: | 35 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Nombre de producción: | Máquina de curado UV de dos lámparas | Tamaño mecánico: | 1900 mm de largo × 2230 mm de ancho × 1410 mm de alto. (Sujeto al tamaño real) |
|---|---|---|---|
| la altura desde el suelo hasta la cinta transportadora: | 850-900 mm ajustable | Método de transmisión: | De izquierda a derecha |
| Voltaje de la fuente de alimentación: | 380V 50HZ, sistema trifásico de cinco hilos | Condición: | Nuevo |
| Garantía: | 1 año | Velocidad: | 1 a 15 m/min |
Descripción de producto

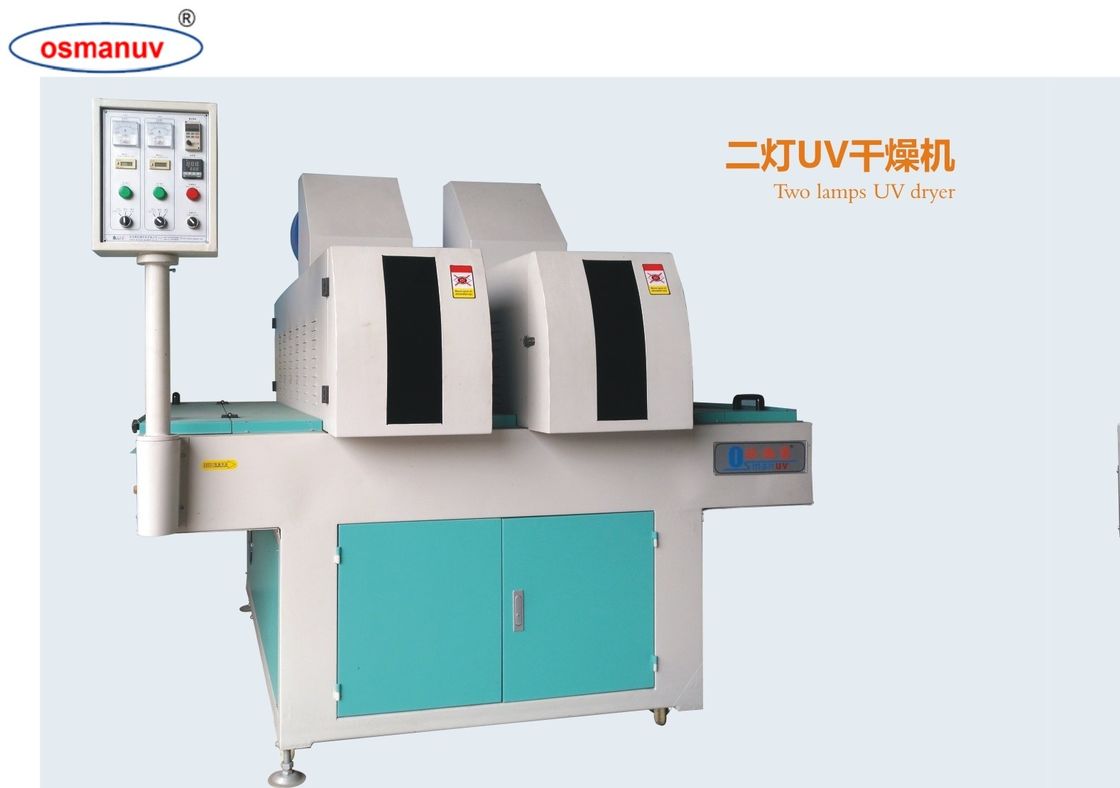

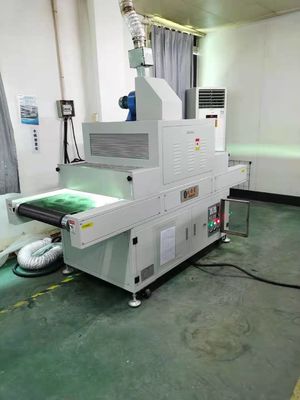

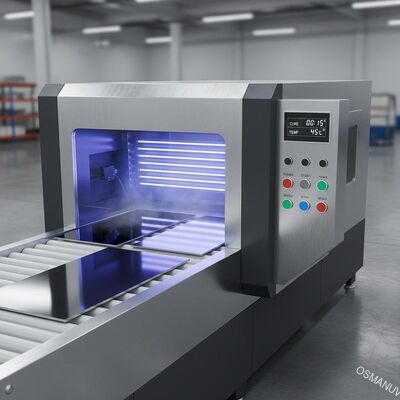

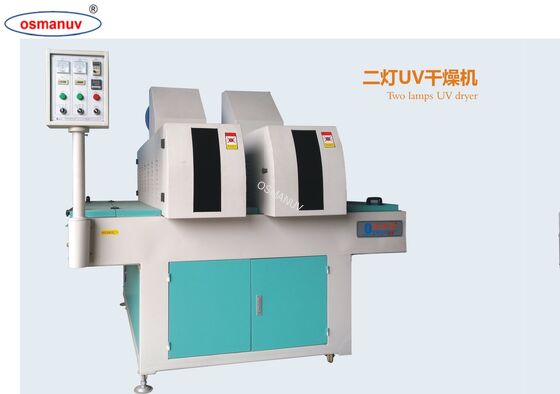

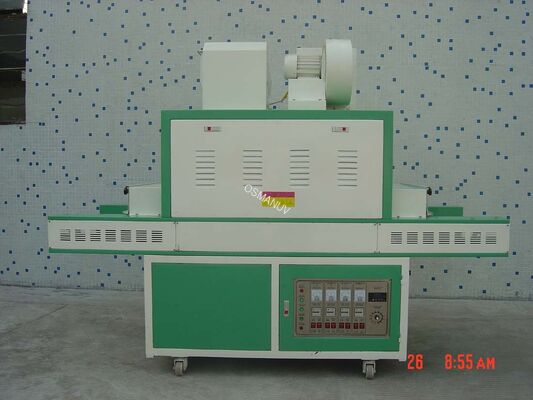

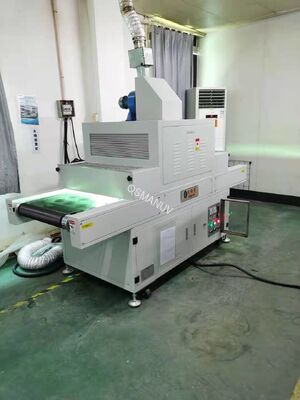

Aluminum Panel UV Curing Machine Fast Drying System for Metal Surface Coatings
Product Description
This specialized two lamp UV curing system is engineered for aluminum panels and metal substrates, featuring enhanced cooling systems and precise intensity control. The machine delivers consistent curing performance for various metal coatings while preventing heat-related substrate deformation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model |
OSM-UV-1320Ⅱ |
| Lamp Type |
2 British PRIMARC 10KW 1387mm mercury mercury lamps |
| Cooling System | Forced air + water cooling |
| Intensity Control | 0-100% adjustable |
| Wavelength Range | 200-450 nm |
| Control Interface | Touch screen with recipe storage |
Application
Curing of UV coatings on aluminum composite panels, metal sheets, automotive parts, and industrial metal components requiring high-quality surface finishing.
Customization
-
Customizable cooling system configuration
-
Customizable intensity control ranges
-
Customizable safety interlock systems
Feature
-
Advanced thermal management
-
Precise intensity adjustment
-
Robust metal construction
-
Minimal heat transfer to substrate
Support and Services
-
Technical consultation service
-
Process optimization support
-
Regular maintenance programs
-
Emergency repair service
Packing and Shipping
-
Custom-sized protective crate
-
Component-specific packaging
-
Detailed installation manual
FAQ
Q: How does it prevent aluminum panels from overheating?
A: The integrated water cooling system and efficient ventilation maintain substrate temperature below 60°C during curing.
