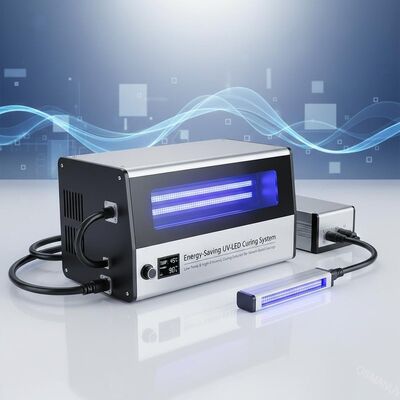

Energy-Saving UV-LED Curing System | Low-Temp & High-Efficiency Curing Solution for Solvent-Based Coatings
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | OSM-GH-1320 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 JUEGO |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | caja de madera |
| Tiempo de entrega: | 30~45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Velocidad de recubrimiento: | Ajustable, 1-15 metros/min. | Material de revestimiento: | Barniz ULTRAVIOLETA |
|---|---|---|---|
| Tipo: | máquina de curado | Componentes principales: | motor, motor |
| Solicitud: | Impresión, recubrimiento, curado adhesivo. | Proceso: | Simple |
| Grado automático: | Completamente automático | Fuente de luz: | Luz ultravioleta |
| Resaltar: | UV-LED curing system for coatings,low-temperature UV curing machine,energy-efficient UV curing solution |
||
Descripción de producto
Energy-Saving UV-LED Curing System | Low-Temp & High-Efficiency Curing Solution for Solvent-Based Coatings

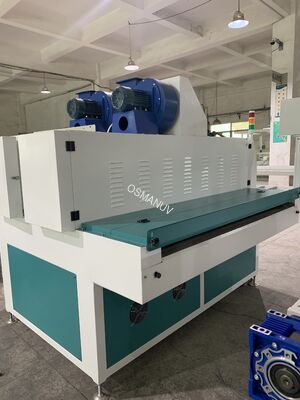

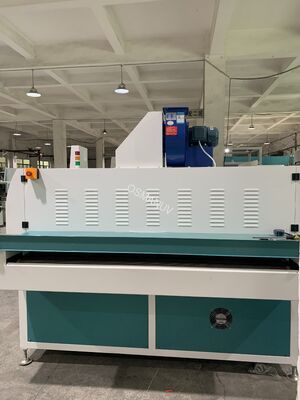

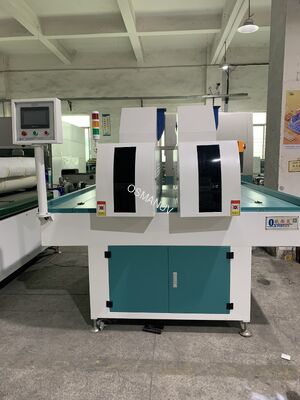

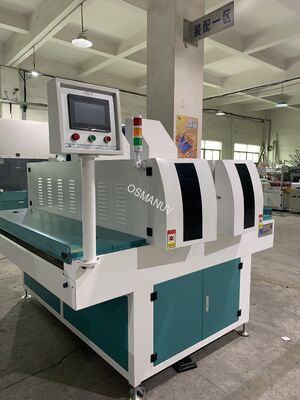

1. Composition of Production Line
A modern system with a UV-LED array module, an air-cooling system, a conveyor, a dedicated LED driver/power supply, and a smart control system with instant on/off.
2. Product Description
Provides an efficient, low-heat solution for curing solvent-based coatings. UV-LEDs emit minimal infrared, preventing heat damage to sensitive substrates while offering significant energy savings and immediate operation.
3. Technical Parameters
| Parameter Category | Specification |
|---|---|
| Model | UVLED-EC-1000 |
| Curing Width | 1000 mm [Customizable] |
| UV-LED Wavelength | 395 nm or 365 nm (other customizable) |
| UV-LED Irradiance | Up to 5000 mW/cm² |
| Heat Output | Very low (cold cure process) |
| Conveyor Speed | 1 - 15 m/min |
| Power Consumption | Up to 70% lower than conventional UV |
| Lifetime | LED: 20,000+ hours |
4. Application
Heat-sensitive applications: Plastic coatings, Prefinished wood, Electronic assemblies, Graphics.
5. Customization
Highly customizable: specific UV wavelengths, irradiance profiles, working distance, modular design for expansion.
6. Features & Advantages
-
Ultra-Low Heat: Prevents substrate warping.
-
Instant On/Off: No warm-up/cool-down.
-
Long Lifetime: Low maintenance, reduces TCO.
-
Eco-Friendly: Lower energy use, no mercury.
7. Support and Services
-
Application testing support.
-
Long-term warranty on LED modules.
-
Energy-saving audit.
8. Packing and Shipping
Compact, lightweight for simpler packing and lower shipping cost.
9. FAQ
-
Q: Are all solvent-based coatings curable with UV-LED?
-
A: Coatings must match the LED's wavelength. We offer customizable wavelength options and assist with selection.
-
-
Q: Main cost benefits?
-
A: Drastically lower energy bills, no lamp replacement, reduced cooling needs.
-
-
Q: Can it be retrofitted?
-
A: Yes, compact size allows straightforward retrofitting with custom mounting solutions.
-
