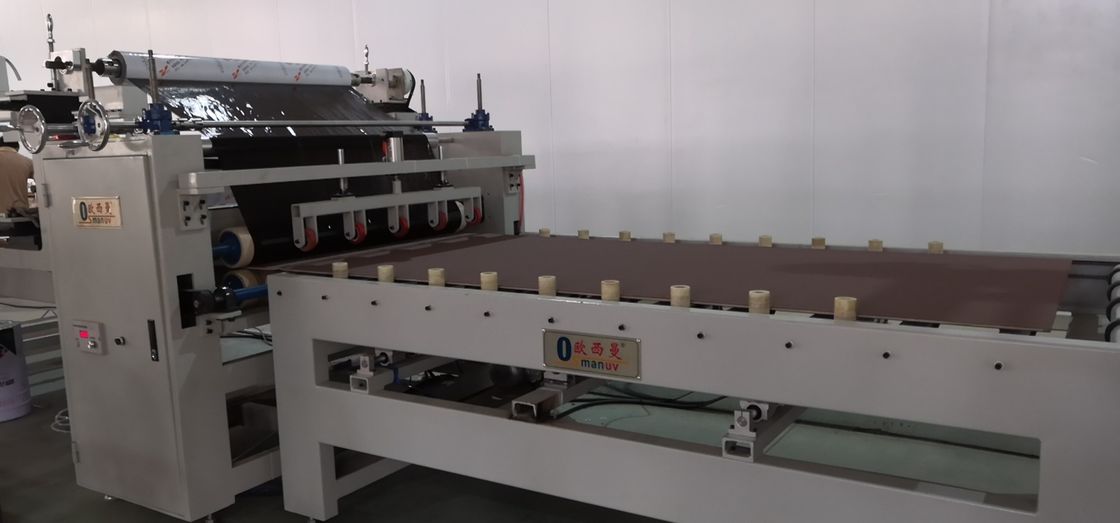

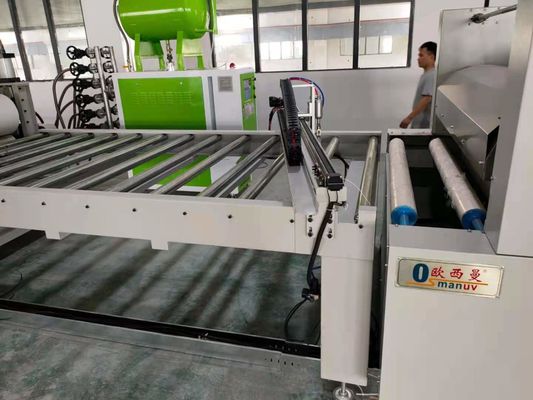

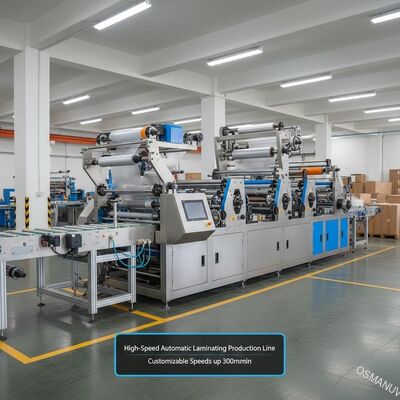

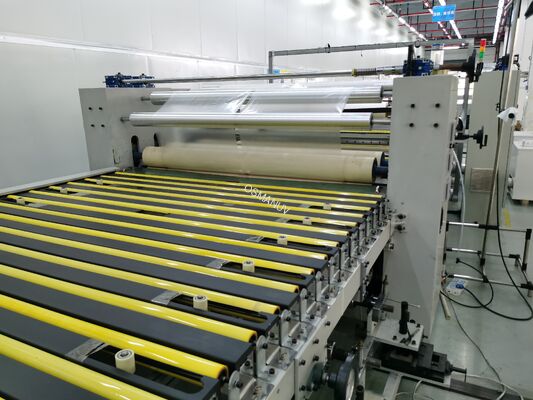

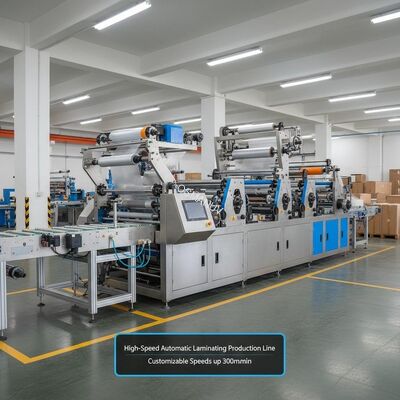

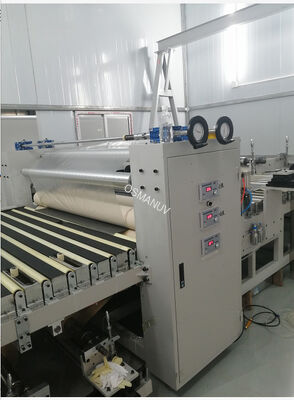

High-Speed Automatic Laminating Production Line for Flexible Packaging | Customizable Speeds up to 300m/min
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | GL-HS1000 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Envasado de madera |
| Tiempo de entrega: | 30-45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Calificación automática: | Automático, semiautomático, eléctrico. | Tipo impulsado: | Eléctrico, hidráulico, mecánico, neumático |
|---|---|---|---|
| Tipo: | Máquina de laminación, máquina de laminado termal de película totalmente automática de fábrica | Tipo de embalaje: | Caso, cartones, película, bolsos, botellas |
| Solicitud: | Maquinaria y hardware, productos básicos, médicos, químicos, alimentos | Servicio postventa proporcionado: | Ingenieros disponibles mantener la maquinaria en ultramar, el soporte técnico, el mantenimiento de c |
| Material de embalaje: | Madera, plástico, papel, metal | Color: | Puedes decidir, a petición del cliente, plateado, azul y blanco. |
Descripción de producto
High-Speed Automatic Laminating Production Line for Flexible Packaging | Customizable Speeds up to 300m/min
Product Description
This High-Speed Automatic Laminating Production Line is a state-of-the-art solution designed for the flexible packaging industry. It integrates unwinding, adhesive coating, drying (if applicable), laminating, and rewinding into a seamless automated process. The line is engineered to bond multiple layers of materials such as BOPP, PET, CPP, Nylon, Aluminum Foil, and Paper to create high-barrier composite films. With a robust PLC control system and servo-driven technology, it ensures consistent tension control and precise registration, drastically reducing material waste and operational costs. The system supports both solvent-based and solventless adhesives, offering converters the flexibility to adapt to market demands for sustainable packaging.
Technical Parameters
| Parameter | Specification |
|---|---|
| Machine Model | GL-HS1000 |
| Max Web Width | 1050 mm (Customizable up to 1600 mm) |
| Max Mechanical Speed | 300 m/min |
| Max Production Speed | 280 m/min |
| Material Thickness Range | Film: 12-60 µm / Foil: 7-30 µm / Paper: 40-120 g/m² |
| Unwind Diameter | Max. 800 mm |
| Rewind Diameter | Max. 800 mm |
| Adhesive Type | Solvent-based, Solventless, Water-based |
| Drying Tunnels | 3-Zone Hot Air Circulation (Length customizable) |
| Coating Method | Gravure Coating (5-Roll Transfer System Optional) |
| Heating Source | Electric, Thermal Oil, or Steam |
| Machine Dimensions | Approx. 14,000 x 3,500 x 3,200 mm |
Application
Our laminating production lines are widely used in the production of:
-
Food Packaging: Stand-up pouches, vacuum bags, snack wrappers.
-
Medical Packaging: Sterilizable bags, blister pack lidding foils.
-
Industrial Materials: Reflective insulation films, waterproof roll roofing.
-
Consumer Goods: Detergent packaging, shampoo sachets, shrink film labels.
Customization
We understand that every production facility has unique requirements. Therefore, our laminating lines are highly customizable. Options include:
-
Customizable working widths to match existing slitting or printing machines.
-
Customizable unwind/rewind configurations (shaftless, turret type).
-
Customizable drying tunnel lengths and temperatures for specialized materials.
-
Integration with existing MES/ERP systems.
Feature
-
Automatic Tension Control: Closed-loop control system ensures stable tension from unwind to rewind.
-
High Precision Registration: Advanced EPC (Edge Position Control) and LPC (Line Position Control) systems.
-
Energy Efficient: Optimized drying tunnel design reduces energy consumption by up to 20%.
-
User-Friendly HMI: Touchscreen interface with one-click recipe storage for repeat jobs.
-
Robust Construction: Heavy-duty frames ensure vibration-free operation at maximum speeds.
FAQ
Q1: What is the difference between solventless and dry lamination?
A1: Solventless lamination uses adhesives without organic solvents, making it more environmentally friendly and eliminating the need for long drying tunnels, thus saving energy. Dry lamination uses solvent-based adhesives and requires a drying tunnel to evaporate the solvents, offering a wider bonding range for difficult materials.
Q2: Can this line handle Aluminum foil lamination?
A2: Yes, with the customizable tension control system, our line is perfectly capable of handling delicate materials like aluminum foil (down to 7 microns) without
