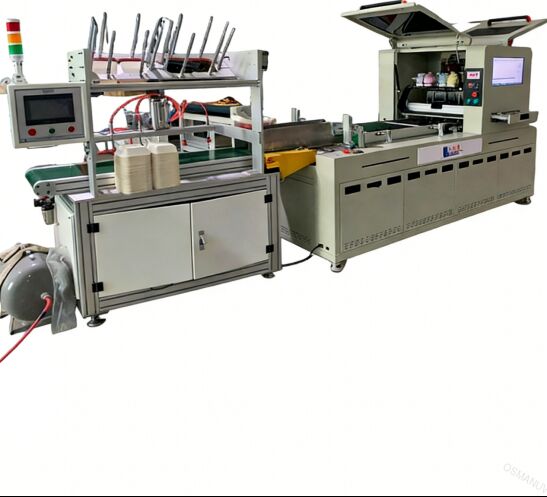

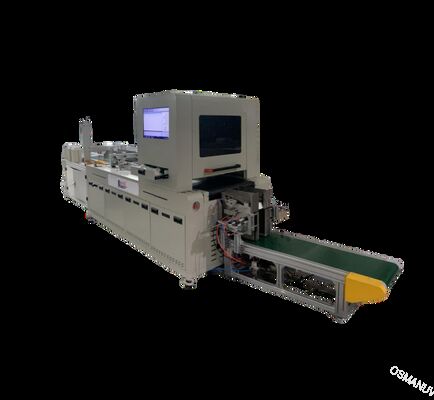

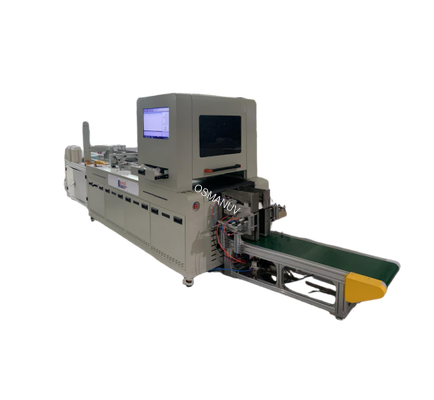

Industrial One Pass Printer with 4-6 Colors and Customizable Resolution for High-Speed Digital Printing
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | Especificación |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Envasado de madera |
| Tiempo de entrega: | 30-45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Condición: | Nuevo | peso: | 1350 kg, 450 kg, 8 toneladas, 120 kg, 200 kgs |
|---|---|---|---|
| Servicio postventa proporcionado: | Ingenieros disponibles para maquinaria de servicio en el extranjero, soporte técnico de video, sopor | Velocidad de recubrimiento: | Ajustable, 150-500m2/h, 0-5 metros/min, 2,5 m/min, puede configurarlo usted mismo |
| Color: | Puedes decidir, arcoíris, etc., dorado, personalizado, plateado. | Ancho de recubrimiento: | 650 mm, revestimiento de 910 mm, 440 mm |
| Uso: | Máquina de recubrimiento ultravioleta puntual, protección de impresiones digitales | Material: | PP, material láser autoadhesivo, vidrio para botellas, metal, PVC |
| Resaltar: | Industrial one pass printer,High-speed digital printing machine,UV coating printer with customizable resolution |
||
Descripción de producto
One Pass Corrugated Case & Cardboard Printer 4-6 Colors
Industrial Single-Pass Inkjet with Customizable Resolution
Product Overview
A One Pass printer (also known as a single-pass digital inkjet printer) is a high-speed, non-contact printing machine that uses fixed print bars spanning the entire width of the substrate. Unlike traditional scanning printers that move the printhead back and forth, a one pass printer achieves full coverage in a single pass of the material, delivering extremely high throughput—typically 50 to 200 m/min or more.
This technology is widely used for printing on:
- Corrugated cardboard and folding cartons
- Flexible packaging films (BOPP, PET, PE)
- Labels and shrink sleeves
- PVC cards and sheets
- Wood panels and building materials
The system supports CMYK + optional white, varnish, or spot colors. With industrial piezo printheads and variable drop size control, it produces sharp text, vibrant graphics, and smooth gradients at resolutions up to 1200 dpi.
Our One Pass printer is fully customizable in terms of print width (from 210 mm to 2500 mm), number of colors, ink type (UV, water-based, or solvent), drying method, and substrate handling (roll-to-roll, sheet-fed, or hybrid).
Technical Specifications
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Print Width | 330 mm / 540 mm / 1000 mm | ✔ Yes (210 mm - 2500 mm) |
| Print Speed | 50 m/min (standard) | ✔ Yes (up to 200 m/min) |
| Resolution | 600 × 600 dpi (standard) | ✔ Yes (up to 1200 × 1200 dpi) |
| Printhead Type | Industrial piezo (Epson / Ricoh / Kyocera / Xaar) | ✔ Yes (brand & model customizable) |
| Ink Colors | CMYK | ✔ Yes (CMYK + White + Varnish + Orange + Violet) |
| Ink Type | UV LED curable | ✔ Yes (water-based, solvent-based available) |
| Substrate Thickness | 0.1 mm - 3 mm (roll); up to 15 mm (board) | ✔ Yes |
| Substrate Width | 330 mm - 1600 mm | ✔ Yes |
| Drying / Curing | UV LED lamps (385/395 nm) | ✔ Yes (hot air, IR, or hybrid) |
| Printhead Maintenance | Auto capping, wiping, and purging | ✔ Yes (manual or fully automatic) |
| Data Interface | Gigabit Ethernet | - |
| Power Supply | 380V / 400V / 415V, 50/60Hz, 3-phase | ✔ Yes (custom voltage) |
| Dimensions (L×W×H) | Varies by configuration | ✔ Yes (line layout customizable) |
Applications
- Corrugated packaging: direct-to-board printing for e-commerce, food, and beverage boxes
- Flexible packaging: BOPP, PET, PE films for pouches and bags
- Label printing: pressure-sensitive labels, shrink sleeves, in-mold labels
- Carton and folding box printing: short-run, just-in-time packaging
- Industrial printing: wood panels, ceramic tiles, PVC flooring, glass
- Commercial printing: brochures, flyers, books (high-speed digital)
- Textile printing: roll-to-roll fabric (with water-based or sublimation inks)
Customization Options
We offer complete customization for the One Pass printer to match your exact production needs:
- Print width: from 210 mm (narrow web) to 2500 mm (large corrugated)
- Number of print bars / colors: 2 to 8 colors + optional primer/varnish
- Printhead configuration: single row, staggered, or hybrid (brand and model selectable)
- Ink system: UV LED, water-based (pigment/dye), solvent, or sublimation
- Substrate handling: roll-to-roll, sheet-fed, hybrid, or inline with converting line
- Curing system: UV LED lamp power & wavelength, IR dryer, or hot air
- DPI and grayscale levels: customized for text or high-quality graphics
- Automation level: manual loading to fully automatic splice & rewind
- Software integration: custom RIP workflow, variable data printing (VDP) support
- Cleanroom version for medical/pharma applications
- Explosion-proof configuration for solvent-based inks
Key Features
- True single-pass printing - no scanning carriage, dramatically higher throughput
- High productivity - up to 200 m/min, suitable for industrial production
- Excellent image quality - sharp edges, smooth gradients, minimal banding
- Wide substrate compatibility - paper, film, board, foil, and more
- Low running cost - no plates, no make-ready waste, short-run economical
- Variable data ready - barcodes, QR codes, serial numbers without speed loss
- UV LED instant curing - no drying time, immediate stacking or rewinding
- User-friendly operation - automatic nozzle compensation and cleaning cycles
- Heavy-duty industrial construction - designed for 24/7 operation
- Energy-efficient - UV LED consumes significantly less power than arc lamps
Support and Services
- Free sample printing - send your substrates for quality validation
- Process integration support - we help integrate the one pass printer into your existing finishing line
- On-site installation, calibration, and commissioning (optional)
- Operator and maintenance training (at our facility or your site)
- 12-month warranty on printheads, electronics, and mechanics
- Lifetime remote support via TeamViewer, WeChat, or phone
- Spare parts availability for printheads, ink pumps, UV lamps, and belts
- Annual service contract with preventive maintenance
Packing and Shipping
Packing:
- Print bars and electronics: anti-static bag + foam-lined export plywood case
- Frame, conveyor, and UV units: stretch film + waterproof PE cover + wooden crate
- Ink supply system: separate sealed container
- All packages labeled with fragile orientation and handling marks
Shipping:
- FOB / CIF / EXW by sea, air, train, or express (door-to-door optional)
- Express shipment for urgent spare parts
- Delivery time: 30-75 working days (depending on customization level)
Frequently Asked Questions
Q: What is the difference between a one pass printer and a conventional inkjet printer?
A: Conventional printers use a scanning carriage that moves across the substrate. A one pass printer has fixed print bars that span the full width, printing in a single pass—resulting in much higher speed (5-10× faster). We can customize either type.
Q: Can I print on both rolls and sheets with the same machine?
A: Yes, we offer customizable hybrid configurations that handle both roll-to-roll and sheet-fed substrates with quick changeover.
