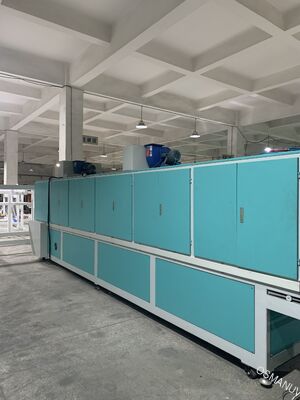

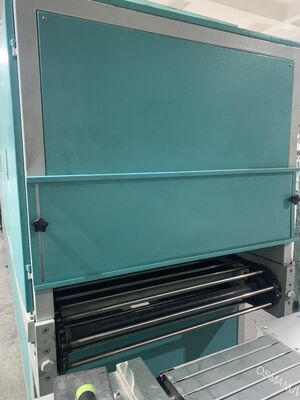

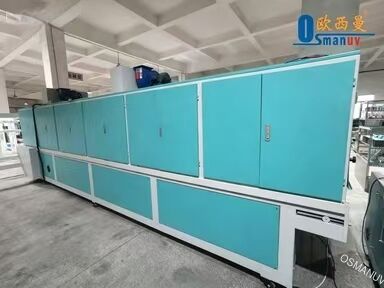

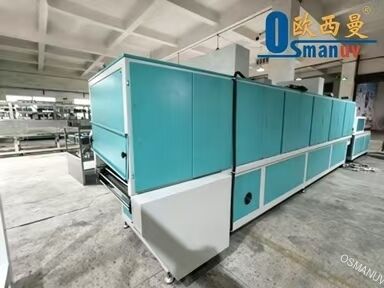

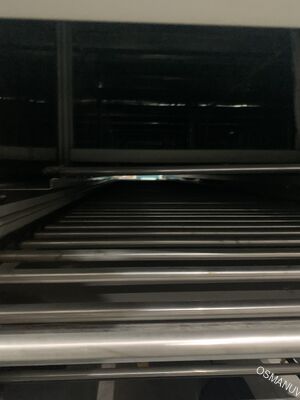

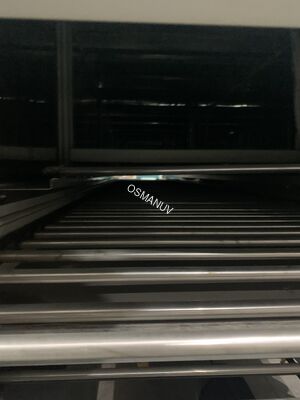

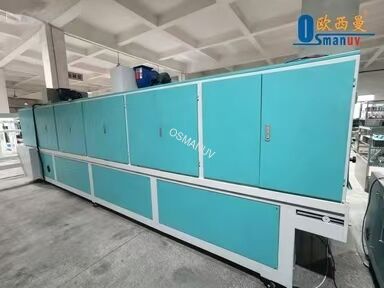

Premium Soft-Touch Excimer Coating Line for Wood-Based Panels – Advanced Surface Finishing
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | OSM-ZFZ-600 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | CAJA DE MADERA |
| Tiempo de entrega: | 30 ~ 40 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Lámparas ULTRAVIOLETA: | 1 pieza en total | Solicitud: | Pintura de superficie seca |
|---|---|---|---|
| Longitud de onda: | 365nm | Características de seguridad: | Escudo UV, parada de emergencia |
| Dimensión de la máquina UV: | 1300×420×750mm | Diámetro de goma: | 100mm |
| Tipo de máquina: | Máquina de recubrimiento UV | Área de revestimiento: | Área extensa |
| Resaltar: | soft-touch excimer coating line,UV curing machine for wood panels,excimer coating surface finishing machine |
||
Descripción de producto
Premium Soft-Touch Excimer Coating Line for Wood-Based Panels – Advanced Surface Finishing

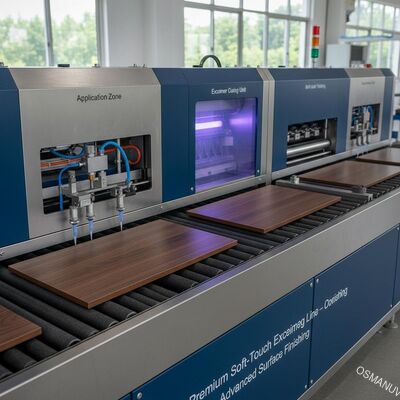

Composition of Production Line
-
Dual-belt infeed conveyor
-
Dust extractor & ionizing bar
-
Precision reverse roll coater (base coat)
-
Excimer curing chamber with 4 lamps
-
Nitrogen purging system
-
Intermediate LED curing station
-
Topcoat curtain coater
-
Finishing UV tunnel
-
Automatic quality inspection (camera)
-
Stacking lift table
Product Description
A premium-grade excimer line delivering a consistent, elegant skin-feel finish on particleboard, MDF, and HDF panels. The advanced 172nm excimer technology produces a super-matte, soft surface that resists fingerprints, water stains, and light abrasion – ideal for luxury furniture brands seeking a “velvet touch” aesthetic.
Technical Parameters (Table)
| Parameter | Specification |
|---|---|
| Panel width range | 600–1350 mm (customizable) |
| Panel thickness | 2–40 mm |
| Maximum line speed | 20 m/min (customizable up to 30 m/min) |
| Excimer lamp wavelength | 172 nm (others on request) |
| Gloss level achievable | 0.5–5 GU (adjustable) |
| Coating thickness precision | ±1.5 μm |
| Nitrogen consumption | 8–12 Nm³/h (recyclable) |
| Installed power | 95 kW |
| Compressed air | 6–8 bar, dry air |
Application
-
High-gloss replacement (matte skin-feel furniture)
-
Bathroom vanities (moisture-resistant requirement)
-
Children’s furniture (safe, no VOCs)
-
Hotel room panels & headboards
-
Acoustic wall panels requiring soft surface
Customization
Fully customizable from panel width (up to 2100mm) to coating material (water-based, UV, or PU). We also offer customized lamp layout, automation level (semi/fully automatic), and integration with existing sanding or printing machines. Custom colors for machine body available.
Feature
-
Zero solvent emission – environmentally friendly
-
No orange peel effect – perfect flatness thanks to excimer quenching
-
Instant curing – no post-production waiting time
-
Low heat input – suitable for heat-sensitive substrates
-
Easy networking with MES/ERP systems (customizable protocol)
Support and Services
-
Factory acceptance test (FAT) at our facility
-
On-site commissioning & calibration
-
18-month warranty (extendable)
-
Lifetime online technical documentation
-
Custom training program for operators & maintenance staff
Packing and Shipping
-
Anti-moisture vacuum packing for electronic parts
-
Steel frame with shrink wrapping for main body
-
Delivery: EXW, FOB, or CIF as required
-
Shipping time: 30–50 days (customizable urgent order)
FAQ
Q: Can this line handle curved or profiled panels?
A: For curved panels we offer a customizable robotic excimer unit – please consult.
Q: Is the skin effect resistant to yellowing?
A: Yes, the excimer layer contains no photoinitiators, so it does not yellow under sunlight.
Q: What coating viscosity is compatible?
A: 50–500 cps; we can customize the coating applicator for high-viscosity materials.
