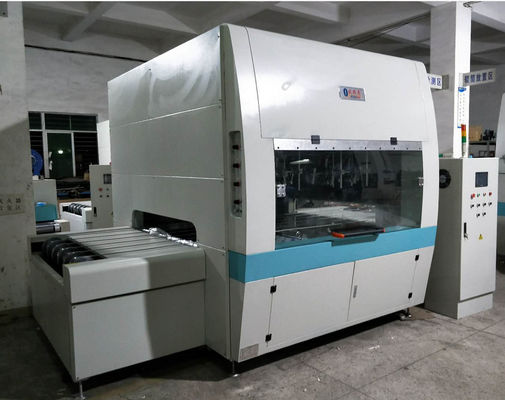

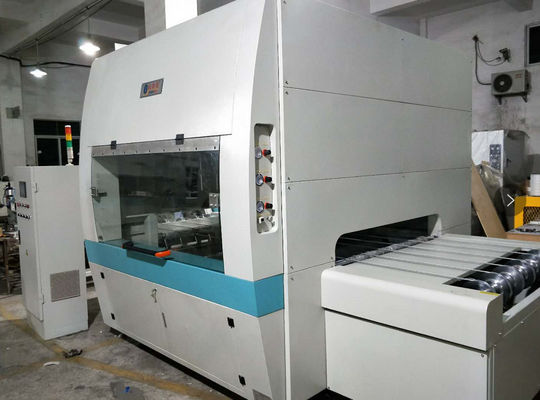

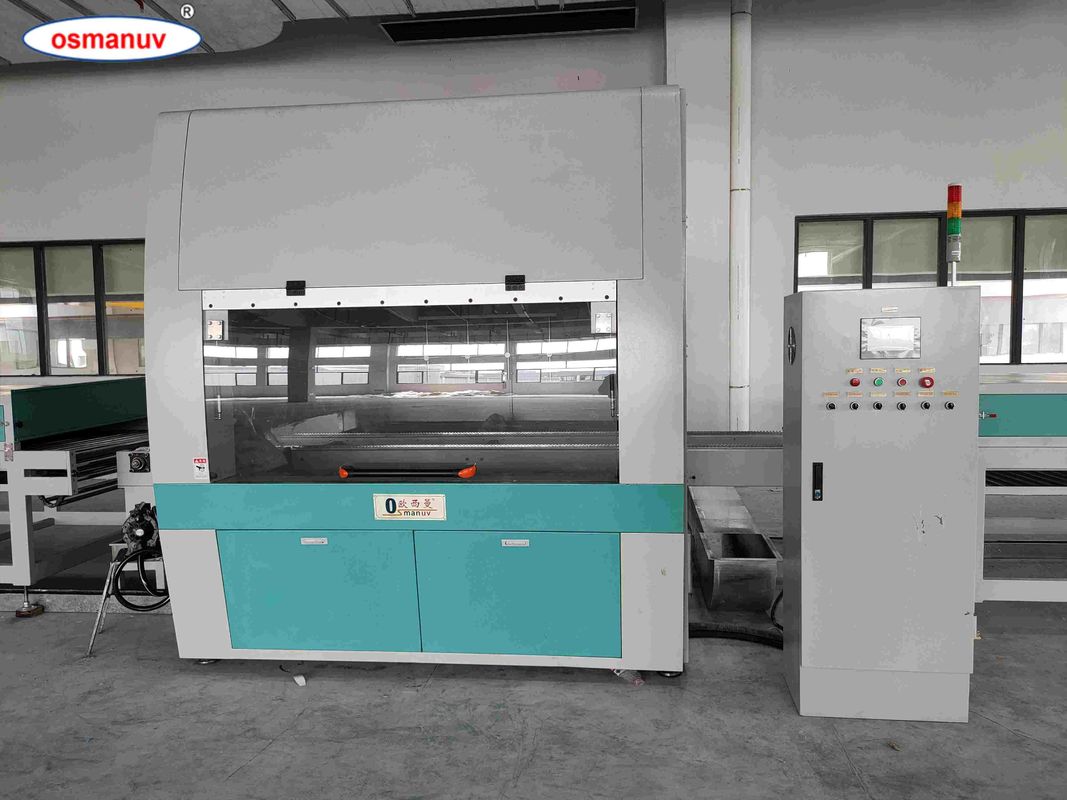

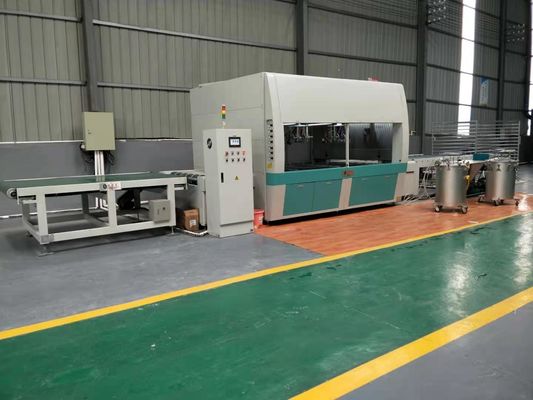

Fully Automatic Reciprocating Spray Coating Line with Customizable PLC and Low Overspray Rate for High Efficiency
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | Especificación |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Envasado de madera |
| Tiempo de entrega: | 30-45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Velocidad de trabajo: | 1-10m/min | ||
|---|---|---|---|
| Resaltar: | fully automatic spray coating line,reciprocating spray machine with PLC,low overspray spray coating system |
||
Descripción de producto
Fully Automatic Reciprocating Spray Coating Line
Technical Specifications
| Parameter | Standard Range | Customizable Options |
|---|---|---|
| Max workpiece size (L×W×H) | 2000×1000×500 mm | Yes - up to 4000×2000×800 mm |
| Spray gun type | Automatic air spray gun | Yes - airless / HVLP / electrostatic |
| Number of guns | 2 (standard) | Yes - 1 to 8 guns |
| Conveyor speed | 1-5 m/min | Yes - 0.5-10 m/min |
| PLC control | 7" HMI + LOGO! | Yes - Delta |
| Paint recovery efficiency | ≥85% | Yes - add cyclone separator |
| Power supply | 380V / 50Hz / 3-phase | Yes - 220V / 60Hz / custom voltage |
| Air consumption | 600 L/min @ 6 bar | Yes - regulated per gun quantity |
Applications
- Furniture & wooden doors
- Automotive parts (bumpers, mirrors, wheels)
- General industry (machinery covers, electronics housings)
- Plastic & composite products
- Customizable for explosion-proof environment (ATEX) or cleanroom class
Customization Options
- Size & layout of the whole line
- Spraying trajectory (teach-in or offline programming)
- Color change system (manual / semi-auto / full-auto)
- Drying method (IR, hot air, UV)
- Data export (MES / SCADA / OPC UA)
Key Features
- Closed-loop pressure control for consistent film thickness
- Automatic gun trigger reduces paint consumption
- Touchscreen recipe management (store up to 1000 recipes)
- Quick color change (< 3 minutes with customizable flushing module)
- Overspray capture system with washable filters
Support and Services
- Free remote troubleshooting (24/7)
- On-site commissioning (customizable service duration)
- Spare parts supply for 10+ years
- Operator training (video / on-site / customizable training plan)
- Line audit and productivity optimization report
Packing and Shipping
- Packing: Stretch-wrapped with anti-rust oil + fumigation-free wooden case (customizable labeling & export carton)
- Shipping: FOB / CIF / EXW (customizable port: Shanghai / Ningbo / Shenzhen)
- Lead time: 20-35 working days (customizable rush order processing)
Frequently Asked Questions
Q1: Can the spraying width be customized for irregular shapes?
A: Yes. The robot arm or reciprocator stroke is 100% customizable based on your workpiece CAD drawing.
Q2: Do you support water-based paint?
A: Yes, with customizable stainless steel tank and acid-resistant hoses.
Q3: What is the minimum order quantity?
A: 1 set (complete line is customizable even for single unit).
Q4: How to get a customized quotation?
A: Send us your: workpiece size, paint type, output per shift, and preferred PLC brand - we design within 24h.
