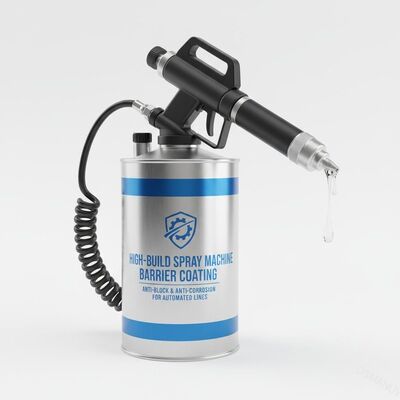

High-Build Spray Machine Barrier Coating | Anti-Block & Anti-Corrosion for Automated Lines
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | Especificación |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Envasado de madera |
| Tiempo de entrega: | 30-45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Sistema de control: | Control de pantalla táctil PLC | volumen de pulverización: | 0-1000ml/min |
|---|---|---|---|
| Tipo impulsado: | eléctrico | Fuente de alimentación: | 220V/50HZ |
| Diámetro de la boquilla: | 0.5 mm | Rocíe el tipo del arma: | Neumático |
| Altura mínima: | 410 mm | Fuente de alimentación: | 220V/380V, 50/60Hz |
| Velocidad de impresión: | 28m/min | ||
Descripción de producto
High-Build Spray Machine Barrier Coating | Anti-Block & Anti-Corrosion for Automated Lines
This spray machine barrier coating is designed to protect spray equipment and surrounding surfaces from overspray, chemical attack, and mechanical abrasion. It forms a removable or permanent protective film that prevents paint/dirt build-up on spray booth walls, conveyors, and robot arms. Ideal for high-volume finishing lines. Customizable viscosity, color, and curing temperature available for different spray placer models.
Technical Parameters
| Parameter | Value / Range |
|---|---|
| Solid Content | 25% - 65% (customizable) |
| Viscosity (cP @25°C) | 200 - 2500 (adjustable) |
| Density (g/cm³) | 0.98 - 1.35 |
| Curing Time | 3 - 15 min @80-150°C (air dry optional) |
| Max Operating Temperature | 180°C (continuous) |
| Tensile Strength (MPa) | 8 - 22 |
| Elongation at Break (%) | 50 - 300% |
| Chemical Resistance | pH 3-12, solvents, oils |
| VOC (g/L) | < 50 (low-VOC version available) |
Application
- Spray booth walls & floors - prevents paint adhesion, easy stripping

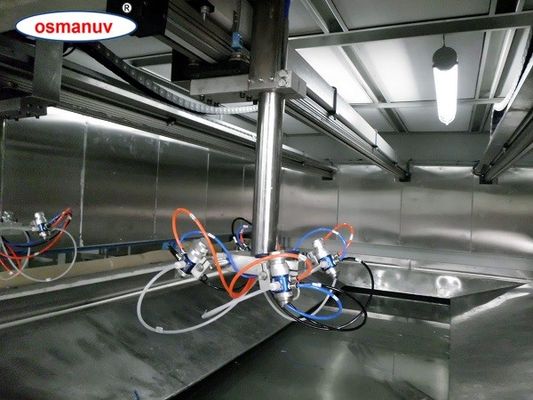

- Conveyor fixtures & robot arms - reduces cleaning downtime
- Overspray collection zones - acts as release layer
- Automotive, wood, metal, plastic coating lines
- Custom shapes/parts - moldable barrier film (customizable thickness)
Customization
We offer full customization:
- Color (clear, white, blue, anti-static)
- Peelability (permanent vs. peelable barrier)
- Chemical resistance profile (acid/alkali/solvent optimized)
- Curing method (UV, thermal, moisture, or ambient)
- Spray machine compatibility (low-pressure, high-pressure, electrostatic)
- Batch size from 1L samples to 1000L IBC tote
Features
- ✅ Anti-block & non-stick surface after curing
- ✅ Corrosion protection for spray equipment
- ✅ Reduces cleaning time by up to 80%
- ✅ Can be applied by robot or manual spray gun
- ✅ Strippable or washable with compatible solvent
- ✅ Heat-resistant up to 180°C
- ✅ Free of heavy metals & halogens (eco-friendly option)
Support and Services
- Free sample testing on your spray line
- On-site application training (spray parameters & curing)
- Custom formula R&D within 10 working days
- Technical datasheets & SDS in 8 languages
- 24/7 online support for troubleshooting
- Recycling program for stripped coating waste
Packing and Shipping
- Standard packing: 5L, 20L, 200L steel/plastic drums
- Custom packing: 1L cans, 1000L IBC, or bulk tanker
- Shipping: UN-approved packaging for non-hazardous or limited-quantity hazardous (depending on formula)
- Lead time: 3-5 days for stock, 10-15 days for custom batches
- Storage: 12 months in original sealed container @5-35°C
Frequently Asked Questions
Q1: Can this barrier coating be used on all spray machine brands?
A: Yes. The formula is customizable for different nozzle types, pressures, and robot speeds. Contact us with your spray placer model.
Q2: Is it removable?
A: We offer both peelable (dry film strips off easily) and permanent versions. The peelable type is most common for spray booth protection.
Q3: How long does the cured coating last before recoating?
A: Under normal overspray conditions, 30-90 days. Recoatable without stripping if using same barrier material.
Q4: What's the minimum order for a customized formula?
A: 20L for basic adjustments (color/viscosity). 100L for full chemical resistance customization.
