Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | Osmanuv |
| Certificación: | CE |
| Número de modelo: | OSM-XT-1024T |
| Documento: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Caja de madera |
| Tiempo de entrega: | 45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Seguridad de capa: | Alta seguridad | Uso: | Panel plano |
|---|---|---|---|
| Rodillo del cepillo: | 200 mm | Potencia de la lámpara UV: | 5kw |
| Tipo de lámparas: | Lámpara UV | Eficiencia de recubrimiento: | Alta eficiencia |
| Velocidad de transmisión: | 25 a 80 m/min | Informe de prueba de maquinaria: | Proporcionó |
| Resaltar: | industrial rotary spray coating line,waterproof pulp molded packaging machine,heavy-duty pulp molding coating machine |
||
Descripción de producto
Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Keywords: industrial pulp coating machine, waterproof rotary spray line, customizable coating equipment

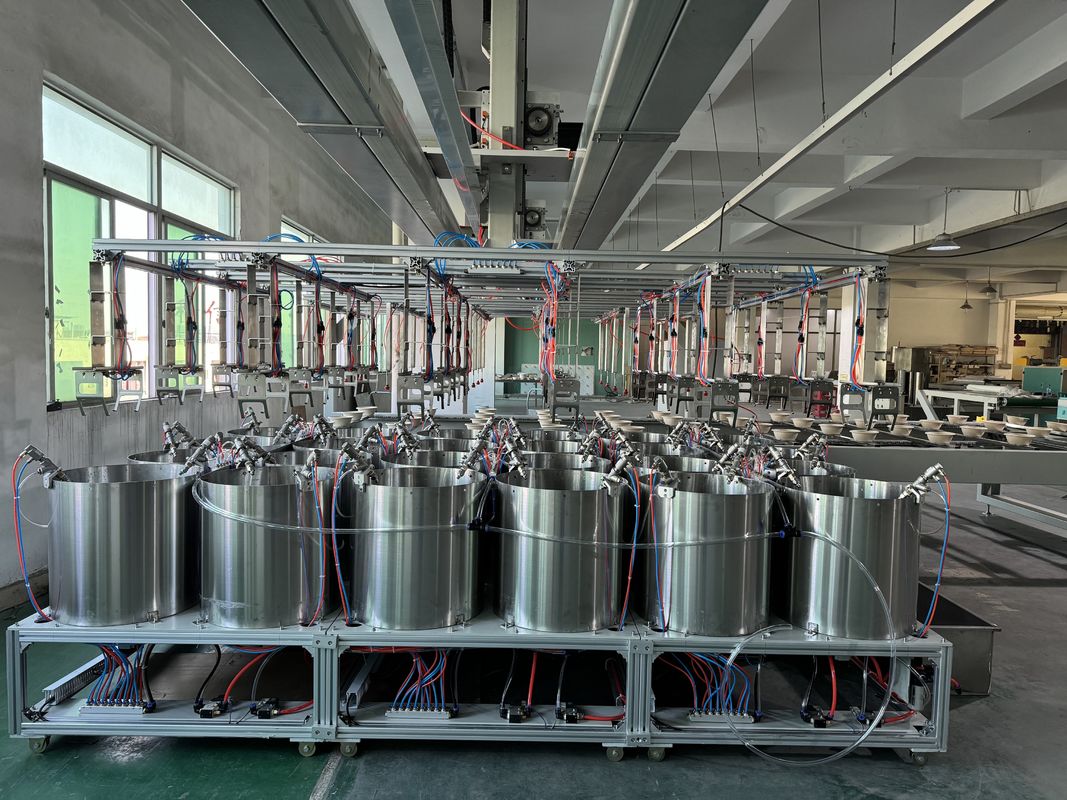

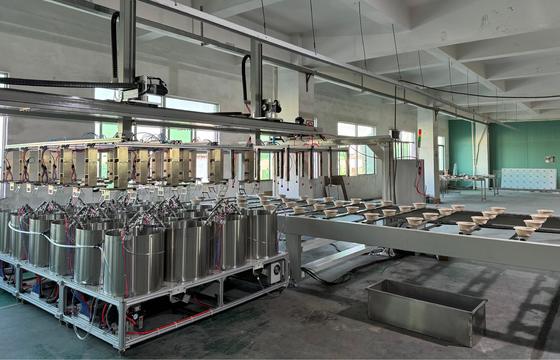

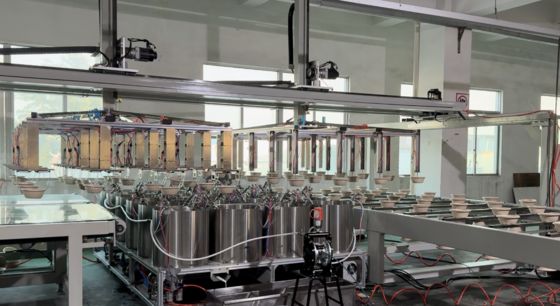

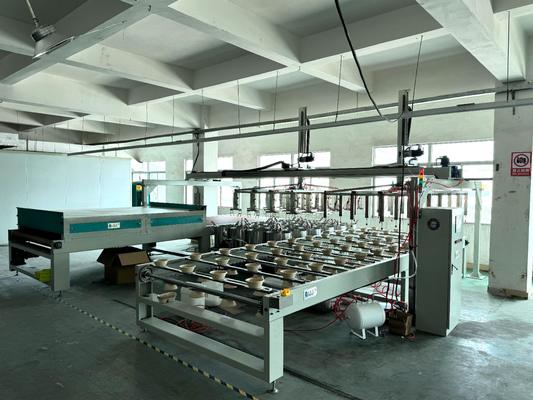

Composition of Production Line:
Robotic loading arm, high-volume rotary spray stations, IR pre-drying tunnel, final curing oven, manual unloading conveyor.
Product Description:
Designed for industrial pulp molded packaging (e.g., electronic cushioning, automotive parts), this line applies robust internal waterproof coatings with superior adhesion and resistance.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Capacity | 500-2000 pcs/hour (customizable) |
| Coating Thickness | 0.05-0.3 mm (adjustable) |
| Air Pressure | 0.6-0.8 MPa |
| Power Consumption | 25-60 kW (depending on configuration) |
| Control System | Mitsubishi PLC + 10" HMI |
| Coating Type | Water-based PU, acrylic (customizable) |
| Footprint | ~15m x 5m x 3m (customizable) |
Application:

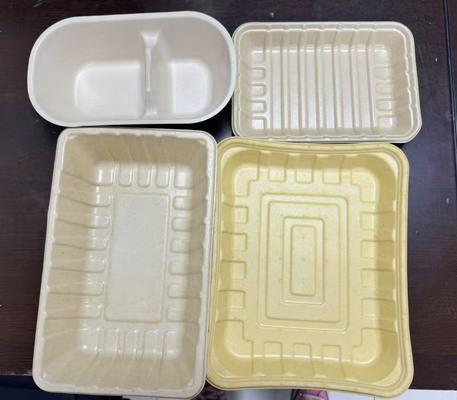

Waterproofing for industrial pulp packaging (edge protectors, corner pads, custom cushioning).
Customization:
Customizable spray head configuration, drying power, and automation level for specific industrial needs.
Feature:
-
Hardened steel construction for durability
-
High-viscosity coating capability
-
Easy maintenance access
-
Low VOC emission design
Support and Services:
On-site commissioning, spare parts kit, operational training, video support.
Packing and Shipping:
Weather-proof wooden crates, anti-rust treatment for all metal parts.
FAQ:
Q: What coating materials are supported?
A: The system is customizable for various water-based coatings per your requirements.
