Precision 5-Axis Gantry Robot for Sensitive Component Handling - CNC Load/Unload Automation

Precision 5-Axis Gantry Robot for Sensitive Component Handling - CNC Load/Unload Automation

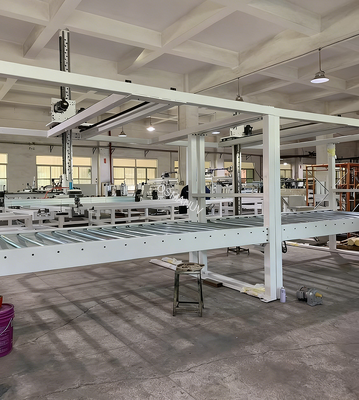

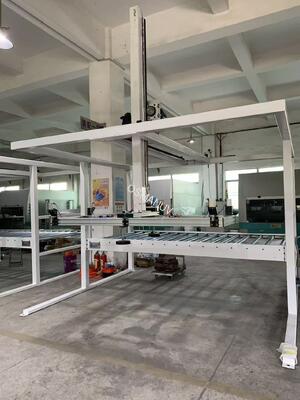

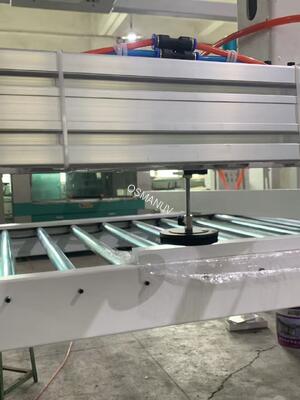

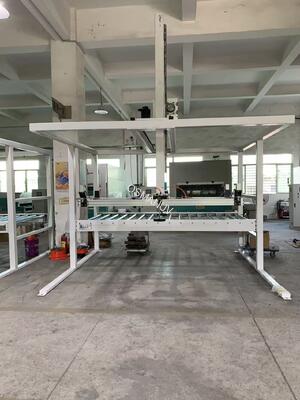

Composition of production line
A high-accuracy gantry system built with minimal particle generation materials, servo-driven linear motors, a 5-axis robot arm mounted on the Z-axis, vision system for guidance, and a control system compatible with cleanroom protocols.

Product Description
This precision 5-axis gantry robot is designed for handling delicate, high-value components in industries like electronics, medical devices, and optics. It provides micron-level accuracy and is available in cleanroom-compatible versions, ensuring gentle and precise manipulation without contaminating sensitive products.

Technical Parameters

Application

• Loading/unloading wafers, PCBs, and micro-components.

• Automated assembly of medical devices and optical instruments.

• Precision testing and inspection stations.

Customization
This system is highly customizable for advanced applications. We can customize the level of precision, the cleanroom certification, the integration of specific vision systems, and develop specialized soft-contact grippers for fragile parts.

Feature

• Sub-Millimeter Accuracy: Linear motors and high-resolution encoders enable unmatched precision.

• Cleanroom Compatible: Designed to meet stringent cleanliness standards.

• Advanced Vision Guidance: Ensures accurate pick-and-place even with product position variation.

• Gentle Handling: Programmable force control prevents damage to delicate items.

• Data Logging: Tracks process data for full traceability and SPC.

Support and Services
We offer extensive application engineering support, on-site calibration, validation documentation (IQ/OQ), and specialized cleanroom installation procedures.

Packing and shipping
The system is shipped in a cleanroom bag, purged with inert gas, and secured in a custom-designed crate to prevent contamination and damage during transit.

FAQ

• Q: Can this robot handle parts with positional tolerance?

  • A: Yes, the integrated vision system can locate parts and compensate for positional errors, a key customizable feature for real-world applications.

• Q: What is the difference between repeatability and accuracy?

  • A: Repeatability is how consistently it returns to a taught position. Accuracy is how close it gets to the true commanded position. Our precision models excel in both, with specifications that can be customized to your needs.

• Q: Do you provide validation support for GMP environments?

  • A: Yes, we can provide a customized validation package that supports Installation Qualification (IQ) and Operational Qualification (OQ) for regulated industries.
