Fully Automatic 24-Station Rotary Coating Line for Pulp Molded Food Packaging - High-Precision Internal Barrier Solution
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | Osmanuv |
| Certificación: | CE |
| Número de modelo: | OSM-XT-1006T |
| Documento: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Caja de madera |
| Tiempo de entrega: | 45 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| Solicitud: | Revestimiento | Rodillos eléctricos: | 164 mm*1450 mm |
|---|---|---|---|
| Tipo: | máquina de recubrimiento | El secado: | Curado UV o IR |
| Dirección de marcha: | De izquierda a derecha | Garantía: | 1 año |
| Automatización de revestimiento: | Alta automatización | ||
| Resaltar: | fully automatic pulp molding coating line,rotary coating machine for food packaging,high-precision pulp molded barrier solution |
||
Descripción de producto

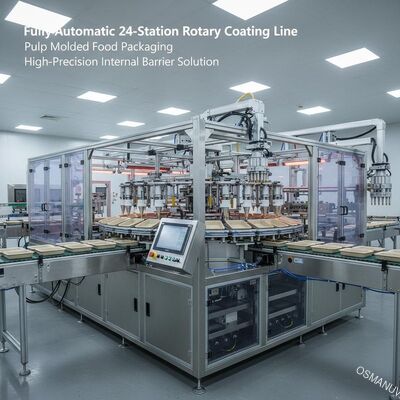

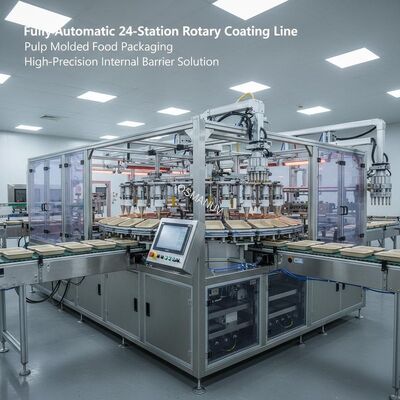

Fully Automatic 24-Station Rotary Coating Line for Pulp Molded Food Packaging - High-Precision Internal Barrier Solution
Keywords: pulp molding coating line, automatic internal coating, food grade coating machine, customizable rotary coating system
Composition of Production Line:
Automated loading system, precision rotary coating units, multi-zone thermal curing oven, UV drying module, quality inspection station, robotic unloading system.
Product Description:
This fully automatic rotary coating line applies uniform, food-safe internal coatings to pulp molded products (e.g., food containers, tableware). It ensures excellent water/oil resistance and compliance with FDA/EFSA standards.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Thickness | 0.03-0.25 mm (adjustable) |
| Line Speed | 10-40 cycles/min (customizable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Drying Method | Thermal/UV hybrid (customizable) |
| Control System | Siemens PLC + 15" HMI with IoT connectivity |
| Coating Material | Water-based acrylics, PFAS-free (customizable) |
| Footprint | ~20m x 4m x 3m (customizable layout) |
Application:

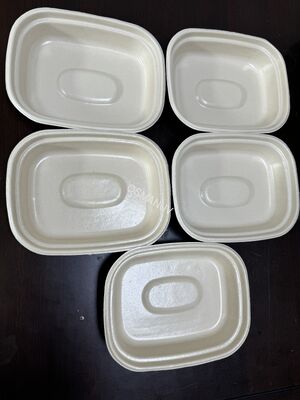

Internal coating for pulp molded food packaging (clamshells, plates, bowls), egg trays, and industrial packaging.
Customization:
Fully customizable coating thickness, line speed, drying method, and material compatibility to meet specific production requirements.
Feature:
-
100% coating coverage guarantee
-
Energy-saving heat recovery system
-
AI-based defect detection
-
Quick-change mandrels for different products
Support and Services:
Installation supervision, operator training, 24/7 remote support, annual maintenance contracts.
Packing and Shipping:
Export-standard wooden crates, waterproof wrapping, FOB/CIF terms available.
FAQ:
Q: Can it handle different product sizes?
A: Yes, the line is customizable with quick-change fixtures for various dimensions.
