24 Station Automated Spin Coating Line for Waterproof Pulp Molded Tableware Coating
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OSMANUV |
| Certificación: | ISO9001 |
| Número de modelo: | OSM-GL-3200W, OSM-SLJ-XZ3200A, OSM-XT-3200T, OSM-IR-2400T |
| Documento: | Version 2.0 of 24-station s...on.pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Envasado de madera |
| Tiempo de entrega: | 55days |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Negociación |
|
Información detallada |
|||
| poder total: | 13kw | Tamaño del producto: | diámetro 350-420 mm |
|---|---|---|---|
| Velocidad de rotación: | Máximo 1400 rpm/1 min. | Función de recubrimiento: | a prueba de agua, a prueba de aceite, a prueba de altas temperaturas, a prueba de adherencias |
| Servicio postventa proporcionado: | Soporte técnico video, ayuda en línea, ayuda de tercera persona de ultramar disponible | Calificación automática: | Automático, semiautomático, manual, otro |
| Garantía: | 1 año | Condición: | NUEVO |
| Resaltar: | 24 station automated spin coating line,automated pulp molding coating machine,waterproof tableware spin coating machine |
||
Descripción de producto
24 Station Automated Spin Coating Line for Waterproof Pulp Molded Tableware Coating
Product Description:

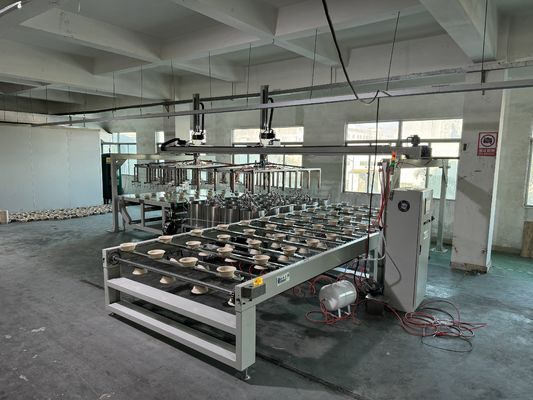

This fully automated 24-station spin coating line is specifically engineered for applying uniform, waterproof coatings to pulp molded tableware such as plates, bowls, and food containers. The system integrates a double-station gantry robot for high-speed loading/unloading, 24 precision spin coating devices for consistent 360-degree coverage, and a 24-meter IR drying tunnel for rapid curing. This complete line ensures a high-quality, food-safe barrier that enhances product durability and liquid resistance.
Composition of the Line:
-

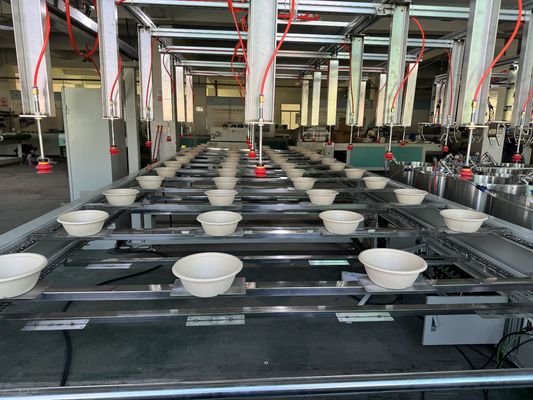

6.4 meters Pre-conveyor
-

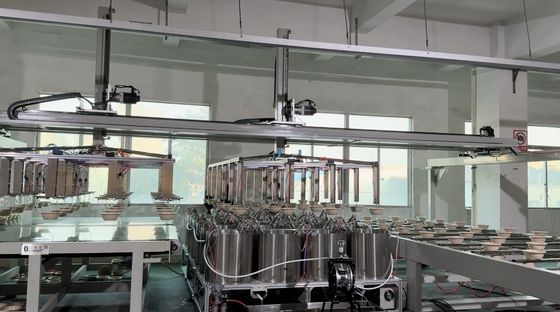

Double-station Gantry Robot
-

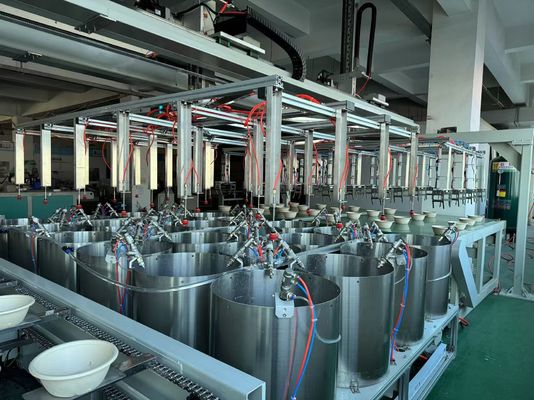

24-station Automatic Spin Coating Device
-

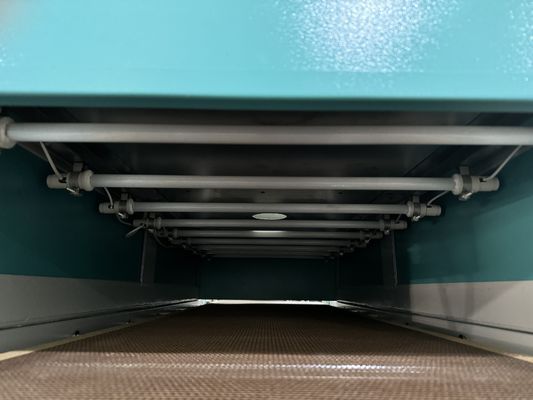

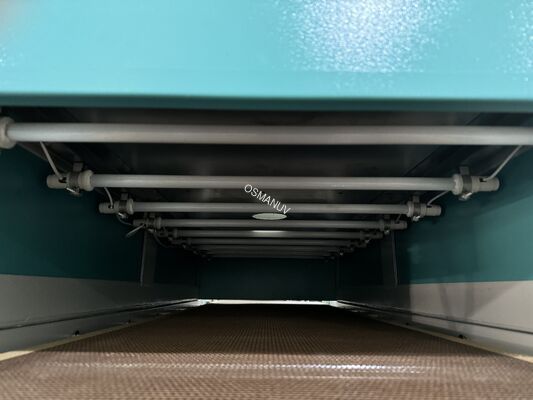

24 meters IR Drying Machine
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Product Name | 24-Station Spin Coating Line |
| 2 | Gantry Robot Cycle Time | 40seconds/48 pieces |
| 3 | Spin Coating Stations | 24 Stations |
| 4 | IR Drying Tunnel Length | 24 meters (18m Heating + 2.5m Cooling+3.5m loding area) |
| 5 | Drying Temperature Range | Ambient -200°C Adjustable |
| 6 | Line Control System | Delta PLC & Servo System |
| 7 | Coating Uniformity | > 99% |
Application:
Perfect for applying biodegradable waterproof coatings to pulp molded food containers, plates, bowls, and other food service packaging products.
Customization:
This complete production line is customizable. We can adjust the spin coating parameters, drying temperature profile, and conveyor speed to match your specific coating material and production requirements.
Feature:
-
Complete automation from loading to drying minimizes labor costs
-
24-station design enables high-volume production capacity
-
Precision spin coating ensures uniform coverage on complex 3D shapes
-
Integrated IR drying with cooling zone for immediate packaging
Support and Services:
-
One-year warranty on entire production line
-
On-site installation and commissioning supervision
-
Lifetime technical support and operator training
-
Remote diagnostics and troubleshooting
Packing and Shipping:
-
Each component is disassembled and securely packed in weatherproof wooden crates
-
FOB shipping terms
-
60 working days delivery after order confirmation
-
Professional installation guidance provided
FAQ:
-
Q: What's the advantage of spin coating versus spray coating for pulp tableware?
A: Spin coating provides more uniform coverage with less material waste, particularly effective for complex-shaped items like bowls and containers. The process is highly customizable for different viscosity coatings. -
Q: Can this line handle different sizes of tableware simultaneously?
A: The system can be customized with quick-change fixtures to accommodate different product sizes, though optimal efficiency is achieved when running similar-sized products in batches.
